Product details

Management number 230822272 Release Date 2026/06/18 List Price $20.97 Model Number 230822272
Category

<p>-This is an Auto-ranging digital multimeter using double-integral style A/D transform as the core. </p><p> </p><p>-It can be used to measures Voltage, Current,Resistance, Capacitance, Diode and Continuity testing, Temperature, Frequency etc. </p><p> </p><p>-They are battery powered. They are characterized by stable function and high reliability, with the features of overload protection and Large LCD display for clear reading, are an ideal tools for lav,factory,radio fans and family use.</p>

  • Introductions:
  • This is an Auto-ranging digital multimeter using double-integral style A/D transform as the core.
  • It can be used to measures Voltage, Current,Resistance, Capacitance, Diode and Continuity testing, Temperature, Frequency etc.
  • They are battery powered. They are characterized by stable function and high reliability, with the features of overload protection and Large LCD display for clear reading, are an ideal tools for lav,factory,radio fans and family use.
  • Features:

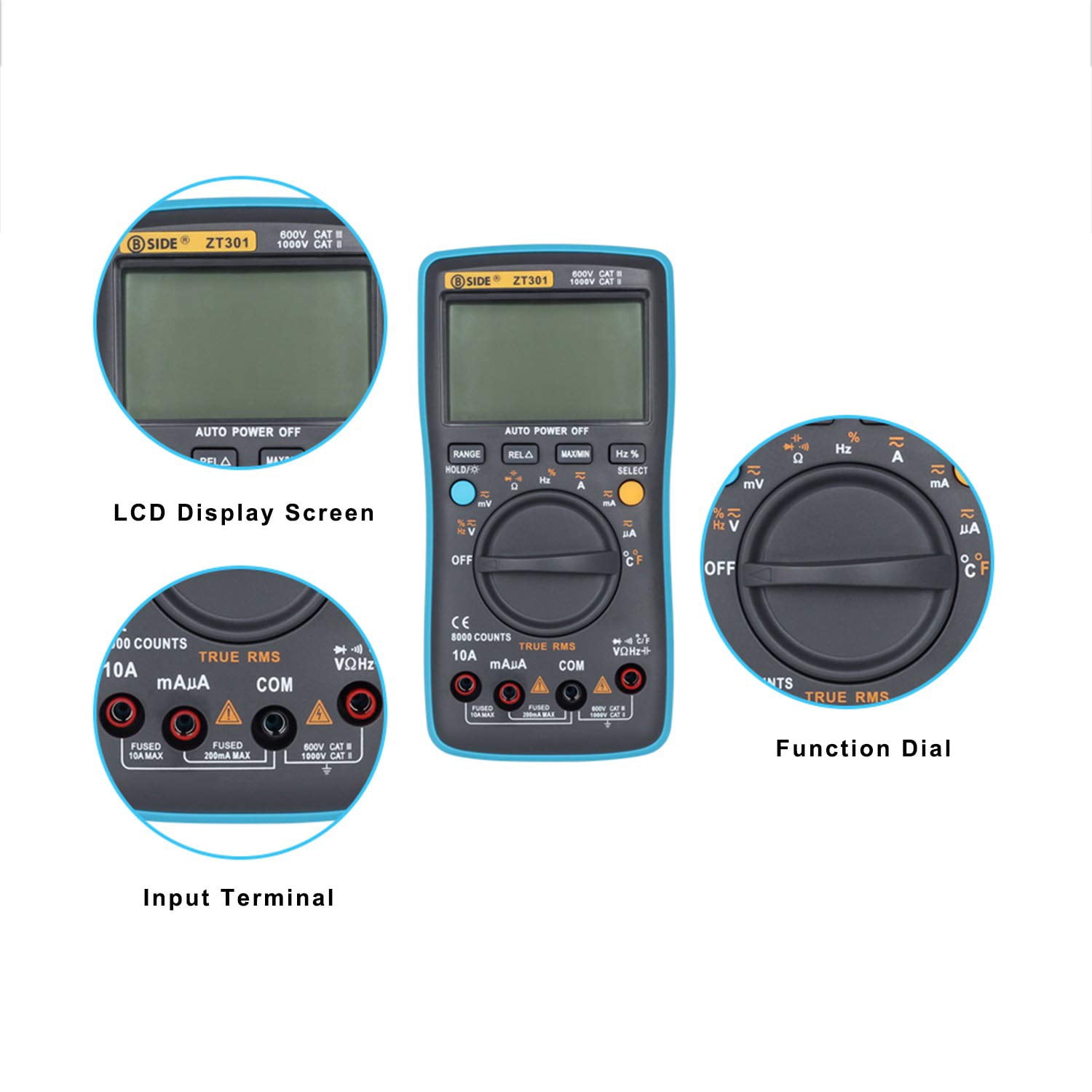

  • · Large LCD display
  • · Max display:8000 counts(ZT301)/9999 Counts(ZT302)
  • · Polarity identification
  • · Measurement mode:double-integral style A/D transform
  • · Sample rate:3 times per second
  • · Over range indication:OL
  • · Low voltage indication
  • · Working Environment:0-40 degrees,relative humidity <80%

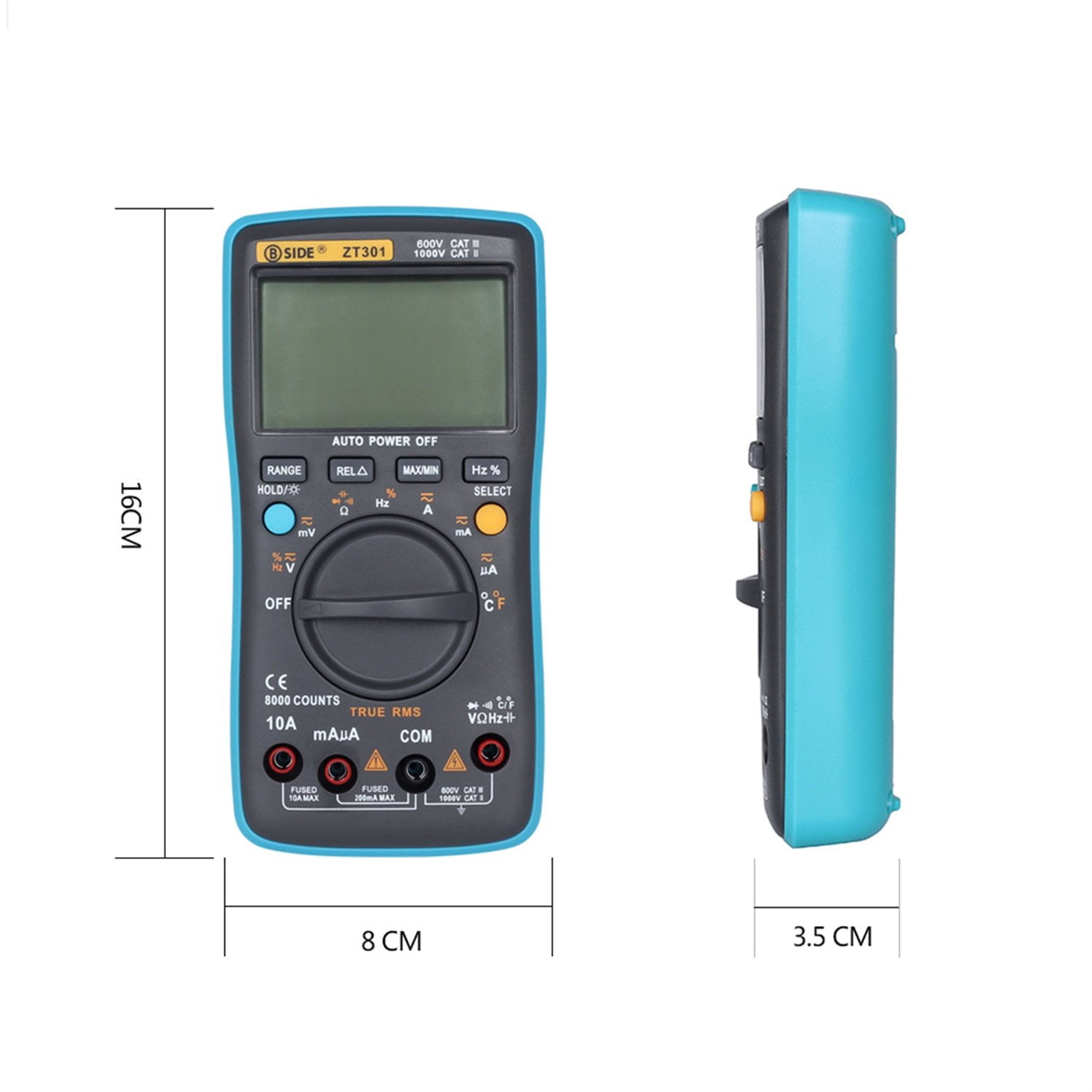

  • · Size:85x160x32 mm
  • · Auto Range
  • · True RMS measurement
  • · Backlight display
  • · Data retention
  • · Polarity automatic recognition
  • · Low voltage display
  • · 10A large current measurement, mA level small current measurement
  • · Automatic shutdown
  • · Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance,
  • · Diode / off measurement, frequency and duty ratio measurement.
  • Specifications:
  • (1) Frequency: 100/1000/10K/100k/10M (±0.1% ±2)
  • (2) Capacitance: 10nF (±5.0%±20), 100nF/1uF/10uF/100uF/1000uF (±2.0%±5), 10MF (±5.0%±5)
  • (3) DC voltage: 800mV (± 1.0%±10), 8V/80V/800V/1000V (± 0.5%±3)
  • (4) AC voltage: 800mV (± 3.0%±3), 8V/80V/800V/750V (± 1.0%±3)
  • (5) DC current :800uA/8000uA (± 1.5%±3), 80mA/800mA (± 1.5%±3), 10A (± 1.5%±3)
  • (6) AC current :800uA/8000uA (± 1.5%±3), 80mA/800mA (± 1.5%±3), 10A (± 1.5%±3)
  • (7) Resistance: 800 (± 0.5%±3), 8K/80K/800K/8M (± 0.5%±2), 80M (± 1.5%±3)
  • (8) Temperature: < 400 ± C (1.0%±5), more than 400 DEG C ± (1.5%±15)
  • < 752 ± (1.0%±5), more than 752 degrees Fahrenheit (1.5%±15).
  • (9) share ratio: 1% to 99% (± 1%)
  • (8) measurement methods: double integral A/D converter
  • (9) ultra range display: OL
  • (10) working environment: 0~40 C, relative humidity < 80%

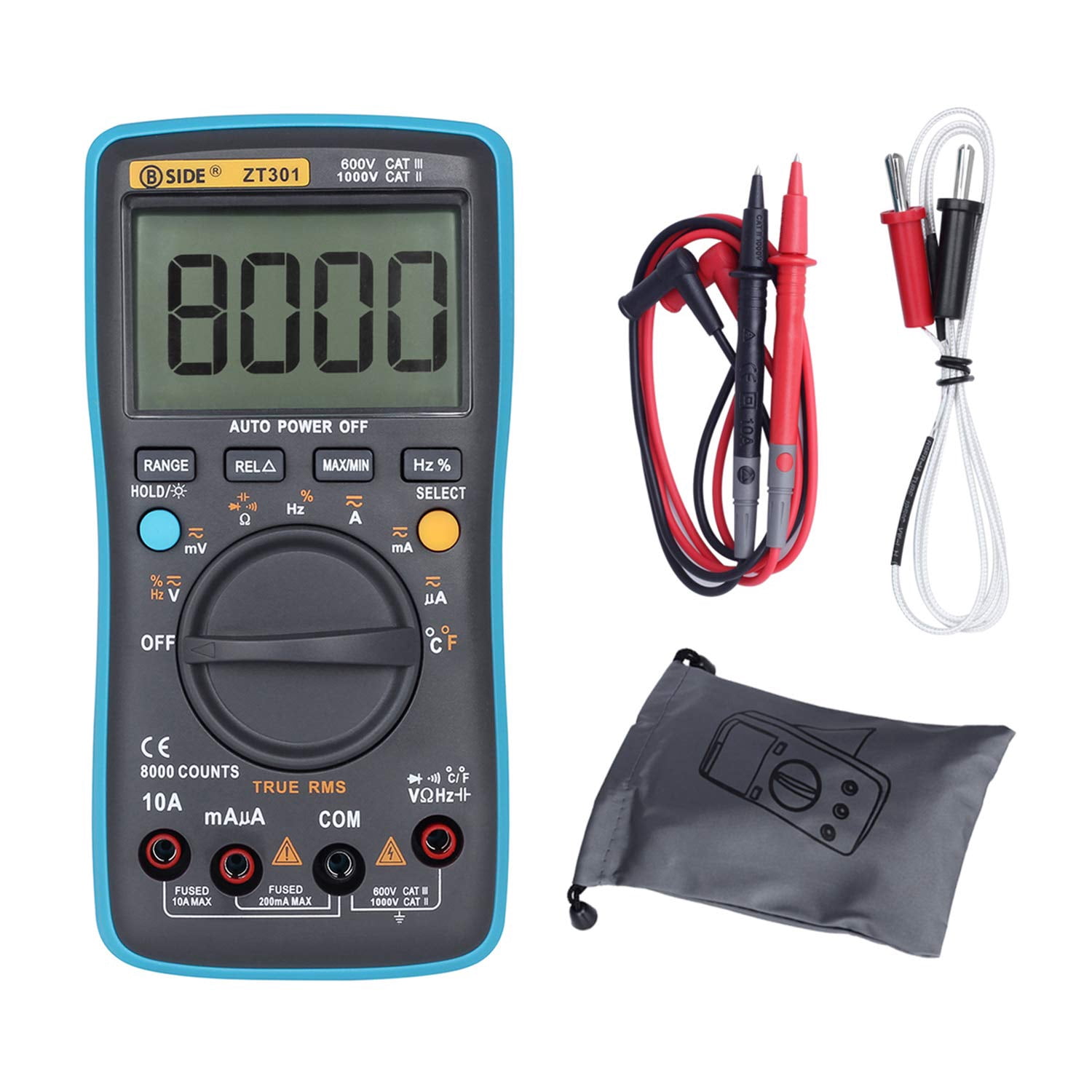

  • Package Includes:
  • Packing box*1
  •  Host*1
  • Chinese and English double document manual *1

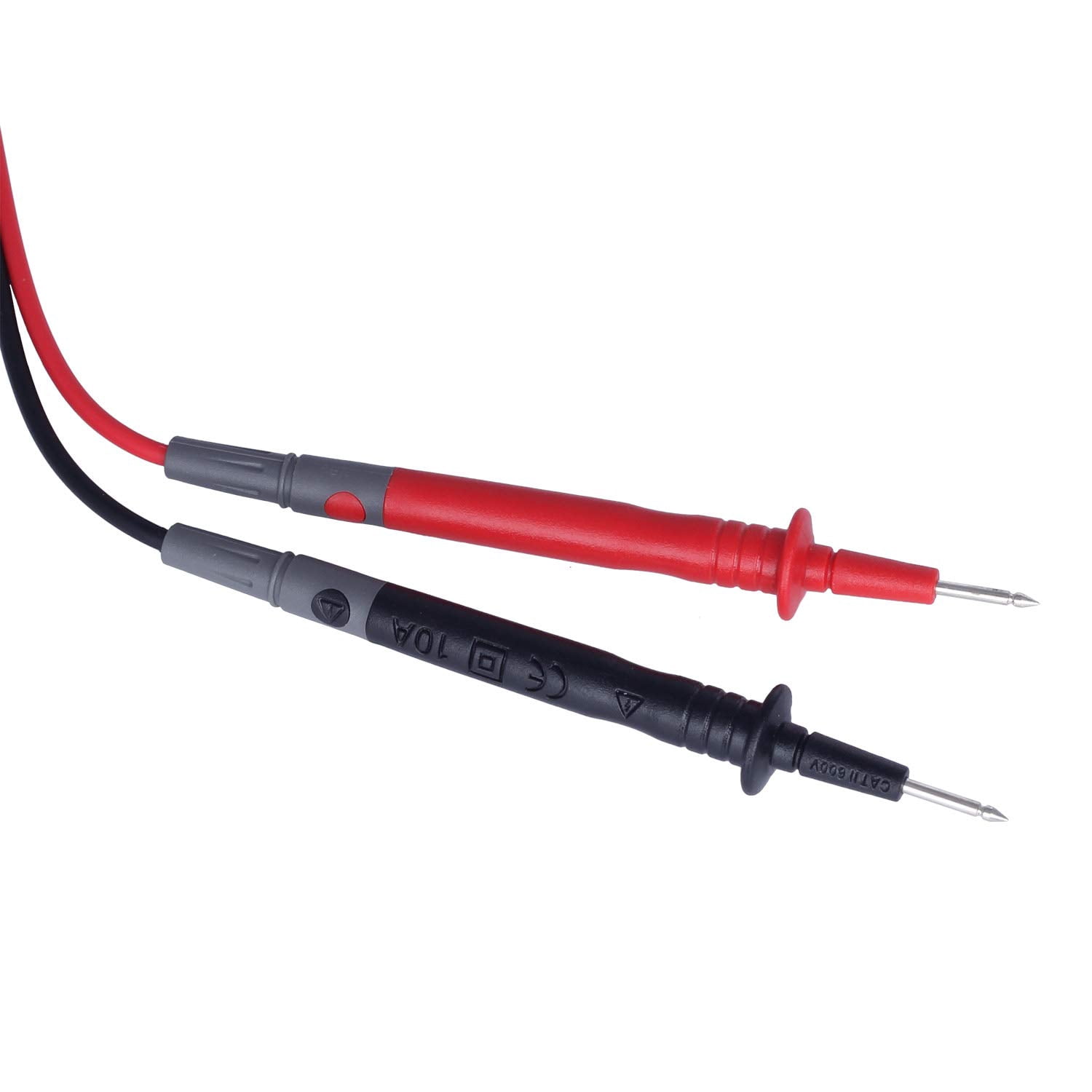

  • Table pen*1
  • Temperature probe*1
  •  Drawstring bag * 1
  • Note:
  • The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
